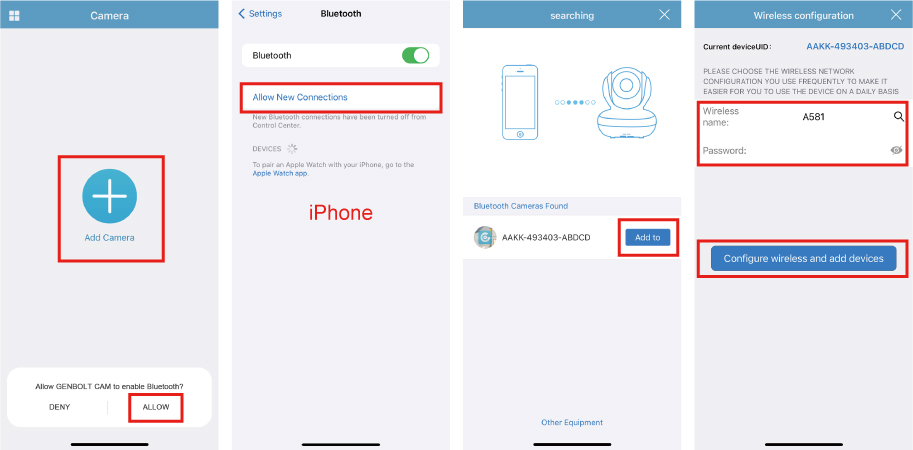

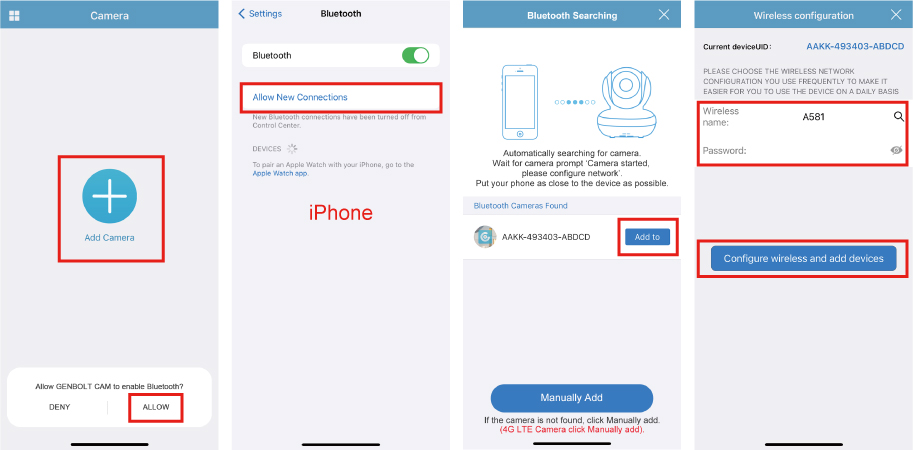

WIFI Bluetooth Setup

Model: GB-102, GB-201, GB-209, GB-211, GB-213

1. Power on the camera, wait for the camera prompt "Camera started, please configure network" sound.

2. Enter "GENBOLT CAM" APP > Add Camera, allow GENBOLT CAM to enable the phone location and Bluetooth (iPhone need to allow Bluetooth new connections) > Add to > Select WIFI and enter the password, configure wireless and add device > Confirm.

Youtube: https://youtu.be/lkp4OgE9_OU

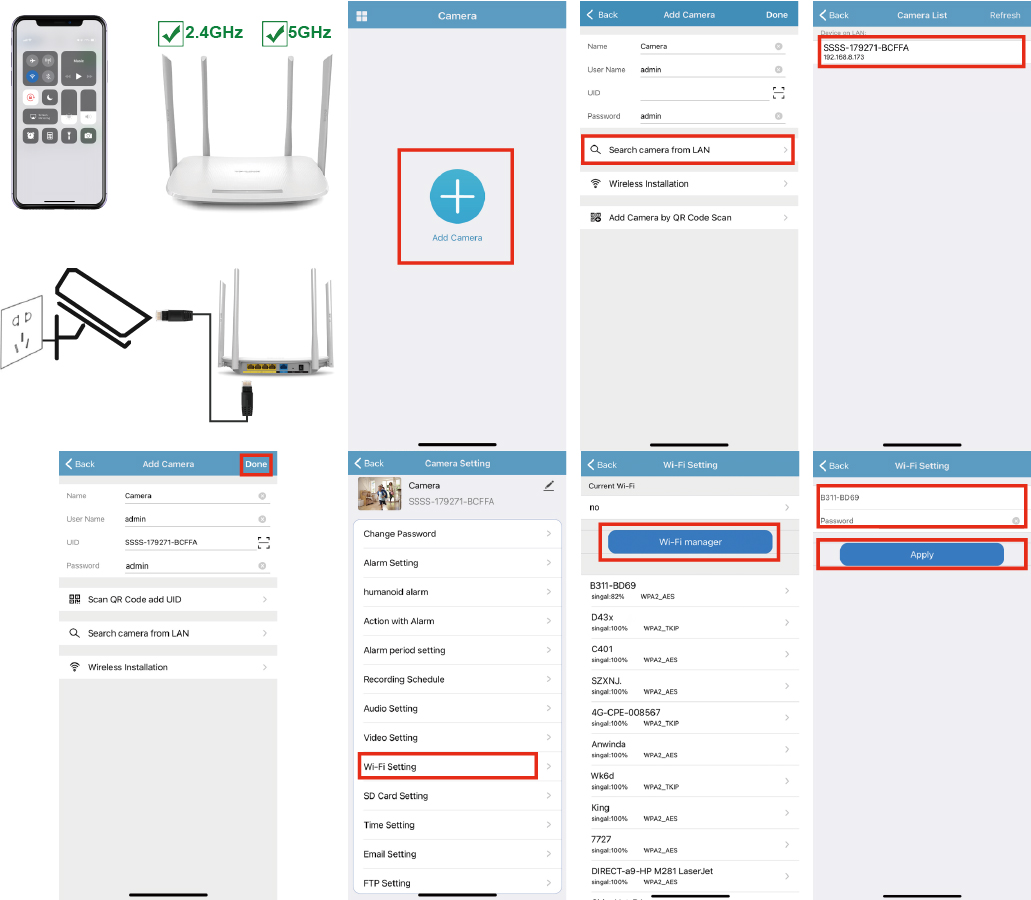

WIFI DC/POE Setup

Model: GB-102, GB-106, GB-201, GB-203, GB-209, GB-211, GB-212, GB-213, GB-216D, GB-220

1. Mobile connect To Wi-Fi.

2. Power on camera, connect camera to router via LAN cablefor initial setup ONLY.

3. Enter APP > Add Camera > Search camera from LAN > Camera UID will appear automatically > Done.

5. Camera setting > Wi-Fi Setting > Wi-Fi manager > Selectyour Wi-Fi account the same as your mobile connectedand input Wi-Fi password > Apply.

Youtube: https://youtu.be/QF0mc2_JCXA

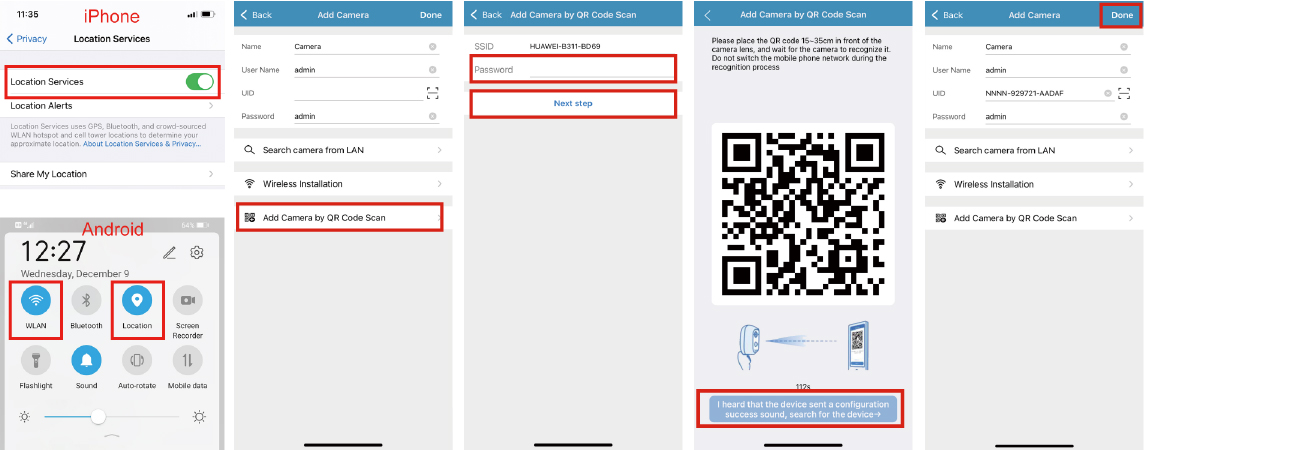

WIFI Battery Setup

Model: GB-216K, GB-217

1. Turn on your phone Location. (for initial set up only, can close it later).

2. Making smart phone connect to wifi (2.4GHZ signal).

3. Power on camera > Enter APP > Add Camera > Add Camera by QR Code Scan > Input wifi password, Next step.

4. Show the phone QR code to camera lens > Search for the device > will show up camera uid automatically after scan success > Done.

YouTube: https://youtu.be/YXMI6B5_ oxc

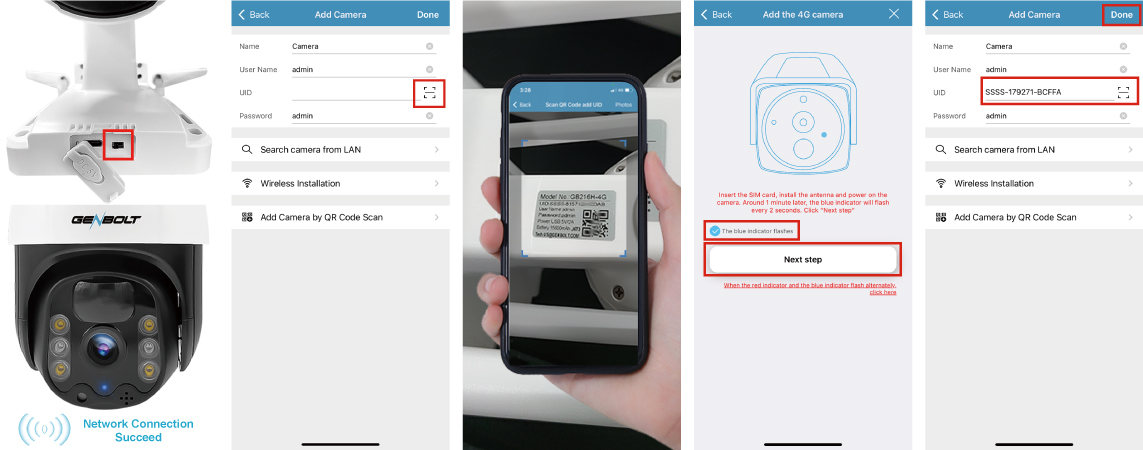

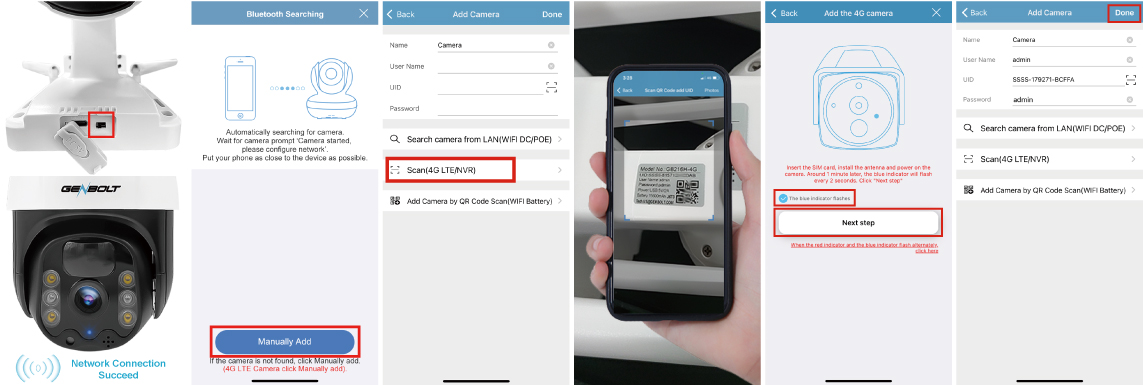

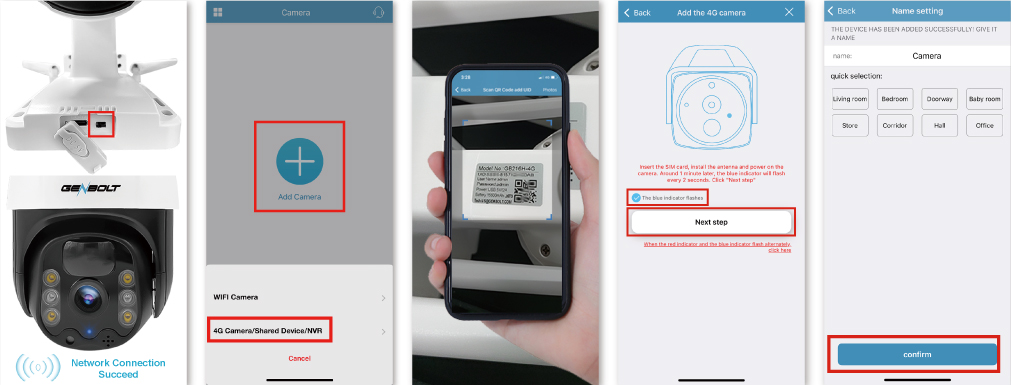

4G LTE Setup

Model: GB-201-4G, GB-213-4G, GB-216-4G, GB-217-4G

1. Power on camera > Enter APP > Add Camera > Click the scan icon to add camera> Scan the QR code on the camera body label > 4G Battery: The blue indicator flashes, Next step > Done.

4G camera can't network check:

1. Check if the sim card is inserted correctly;

2. Remove the sim card and insert it into the phone to check if it can access the network, If so, insert the camera again.
